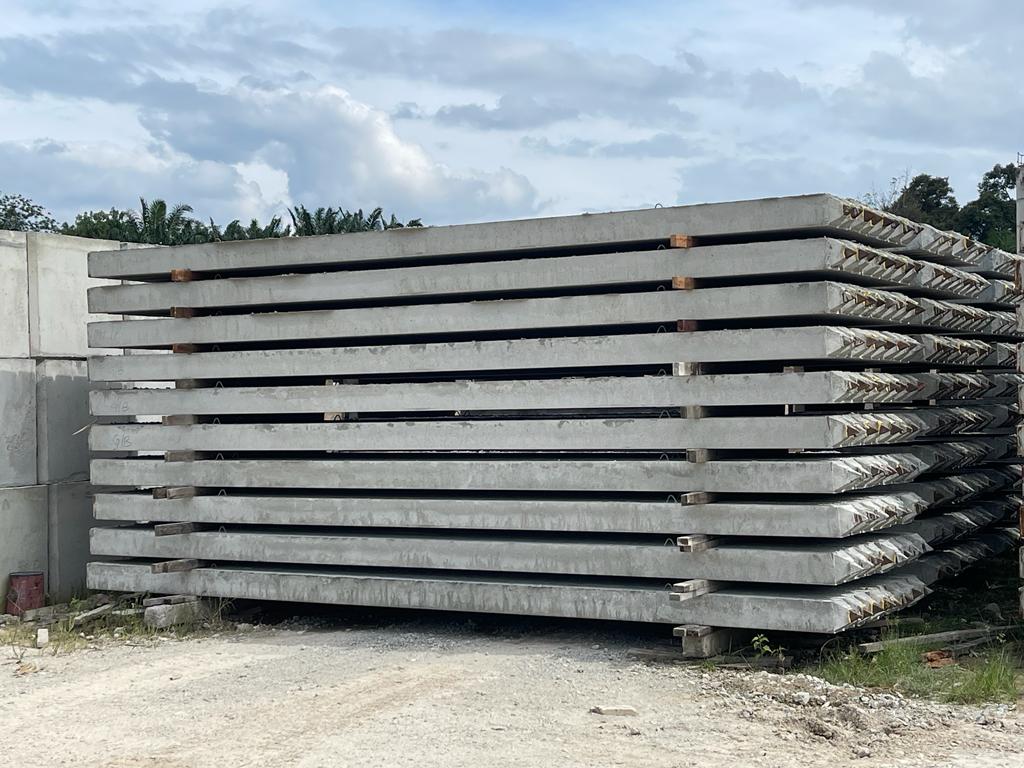

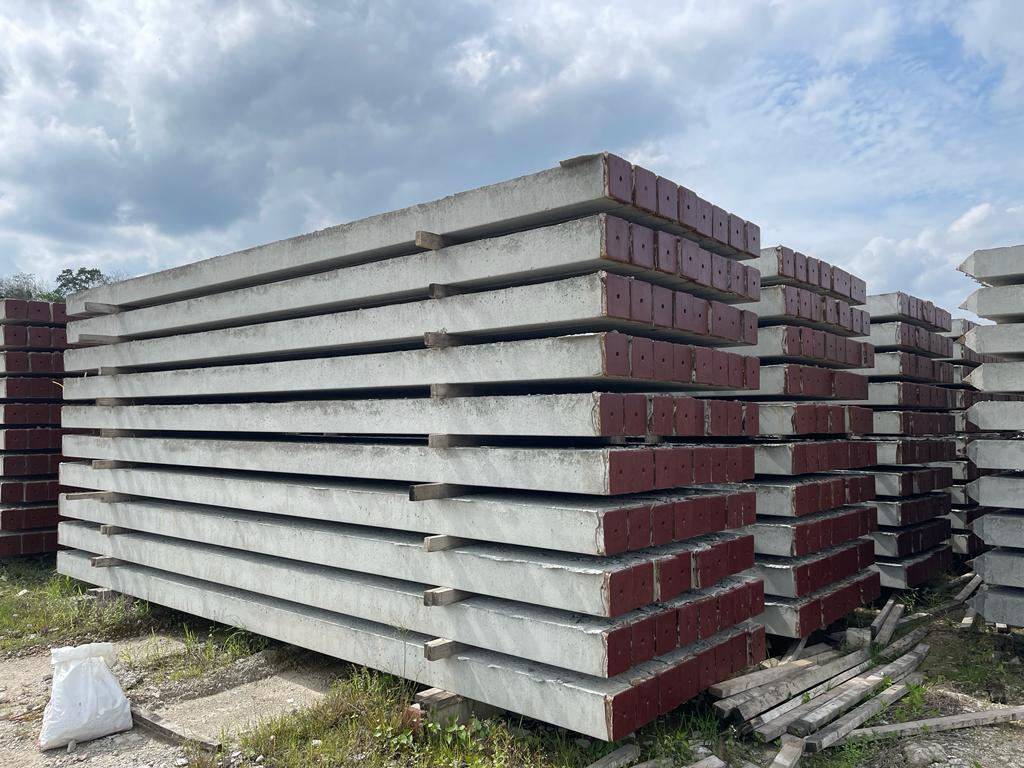

Reinforcement Concrete Piles
Materials SPECIFICATIONS
| Consituent Materials | |
| Cement | MS 522 ordinary portland cement |
| Steel Reinforcement | BS 4449 / MS 146 |
| Aggregates | BS 882 / MS 29 mining sand / 20mm aggregates |
| Admixture | BS 5075 / MS 922 super plasticizer |
| Cold Drawn Wire | BS 4482 / MS 144 lateral reinforcement stirrup |
| Mild Steel Plate | BS EN 10137-1 end plate (Grade 43A) |
PRODUCTIONS
MUCPTM piles are manufactured under factory controlled conditions that are certified to ISO 9001:2015.
Our piles are produced in rigid and dimensionally accurate moulds to facilitate the accurate fixing of steel reinforcement cages and joint plate. In order to produce high performance products, the production accommodates with external vibrations system to provide an stability and efficient compacting process on concrete.

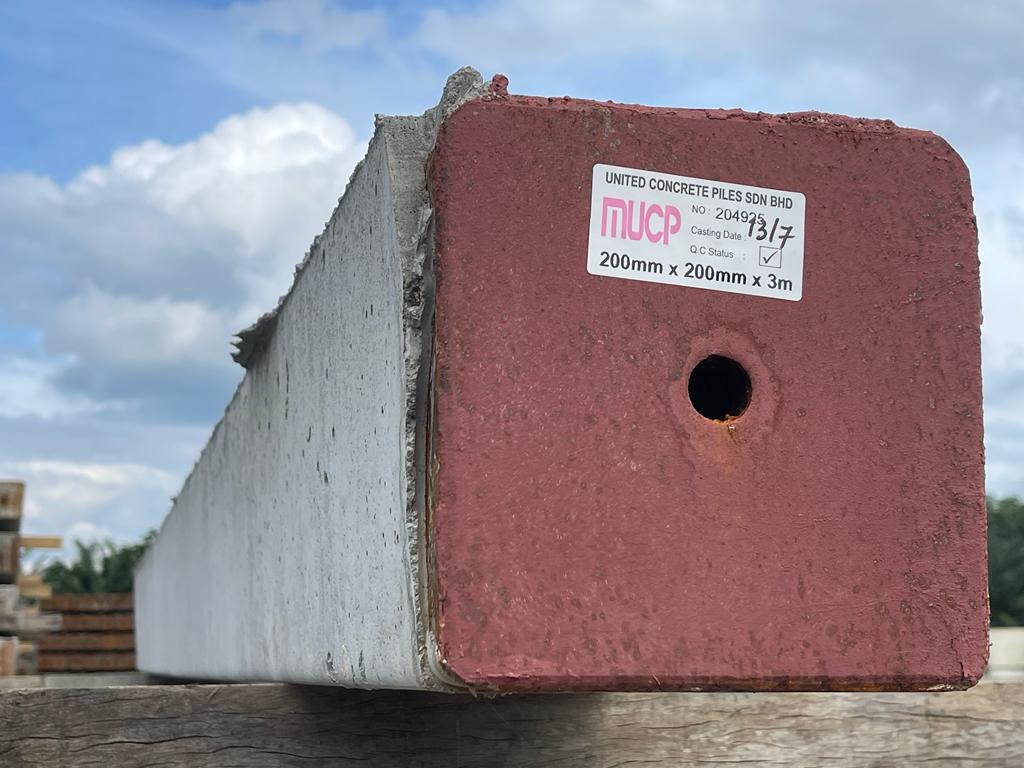

PRODUCT SPECIFICATION
| DIMENSION | MAIN REINFORCEMENT BAR nos x dua (mm) |
WIRE RODS | PLATE THICKNESS (mm) |
CONCRETE COVER (mm) |
AXIAL LOAD CAPACITY | |||||||
| SIZE (mm) |
LENGHT (m) |
A (mm) |
B (mm) |
C (mm) |
WIRE DIAMETER (mm) |
STIRRUPS | MAX SAFE STRUCTURAL WORKING LOAD (tonnes) |
RECOMMENDED WORKING LOAD (tonnes) |
||||
| PITCH X (mm) |
PITCH Y (mm) |
CONCRETE GRADE N/mm 50 |
||||||||||
| 150 X 150 | 6 , 3 | 153 | 147 | 150 | 4 X T9 | 4.5 | 40 | 90 | 4.5 | 30 | 35 | 28 |
| 200 X 200 | 6 , 3 | 203 | 197 | 200 | 4 X T10 | 4.5 | 35 | 100 | 6 | 30 | 61 | 48 |
| 200 X 200 | 6 , 3 | 203 | 197 | 200 | 4 X T12 | 4.5 | 35 | 100 | 6 | 30 | 61 | 48 |
*Scroll to right to see more details.
TECHINICAL CALCULATIONS
Capacity of RC Piles in accodance to standard specified.
Safe working load = 0.275fcu *AC + fsc *AS
where,
fcu = characteristic strenght of concrete at 28 days (45N/mm)
AC = area of concrete
AS = area of main reinforcement
fsc = 175N/mm for high yield steel
* The acial load capacities are based on the structural capacities of RC pile and actual pile bearing capacities may need to consider the geotechnical factor.

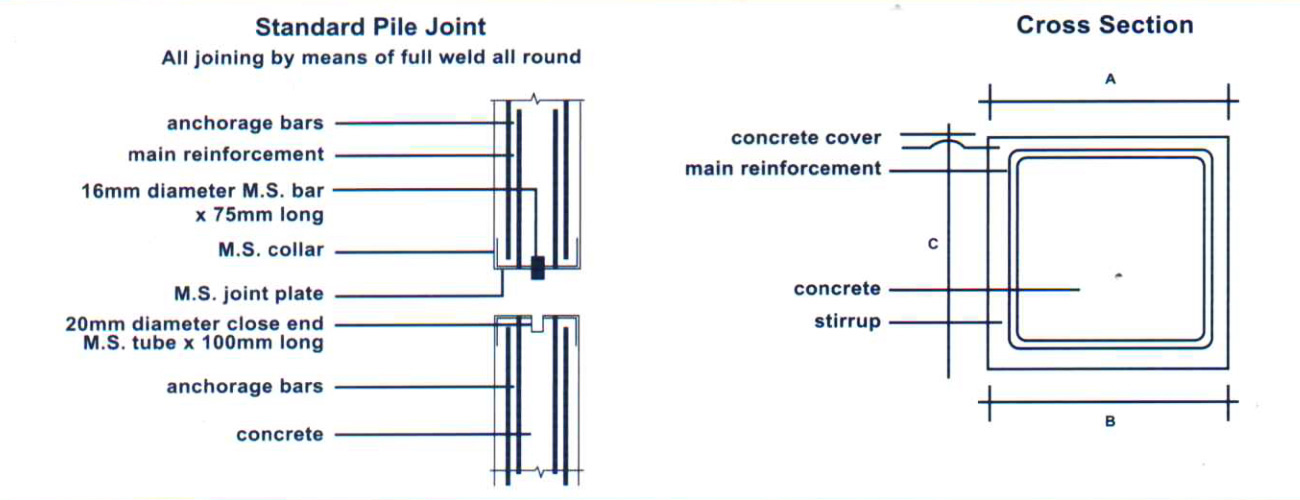

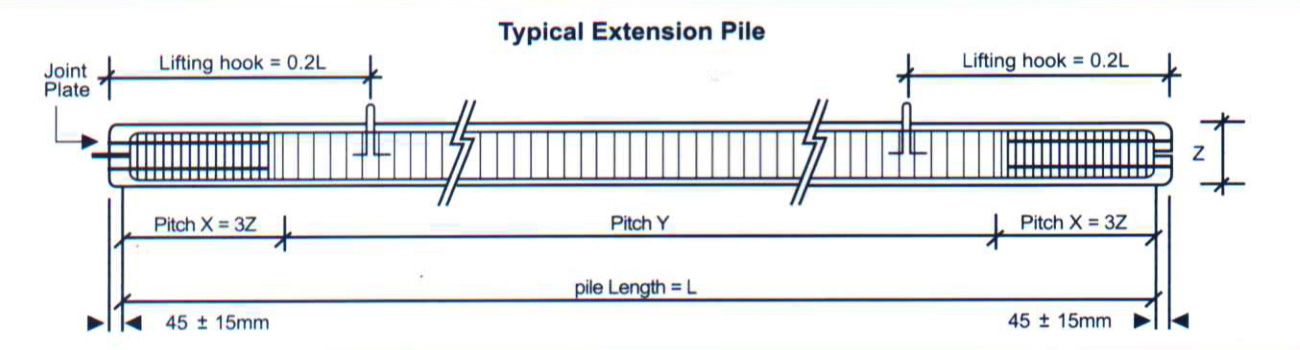

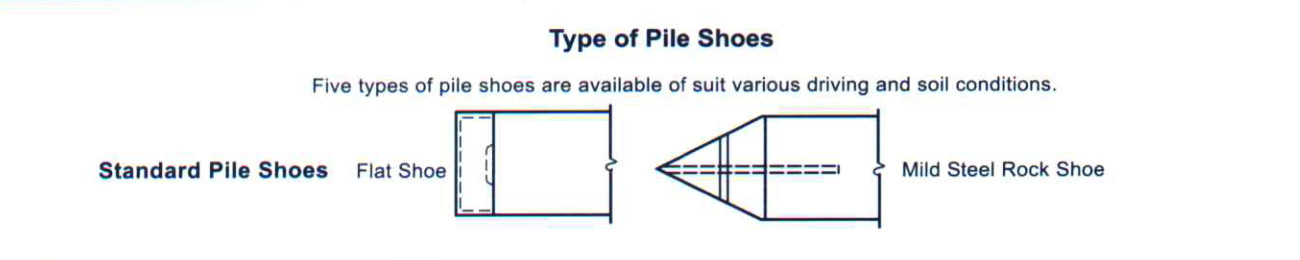

TECHINICAL DRAWINGS
