U Shape-Drain

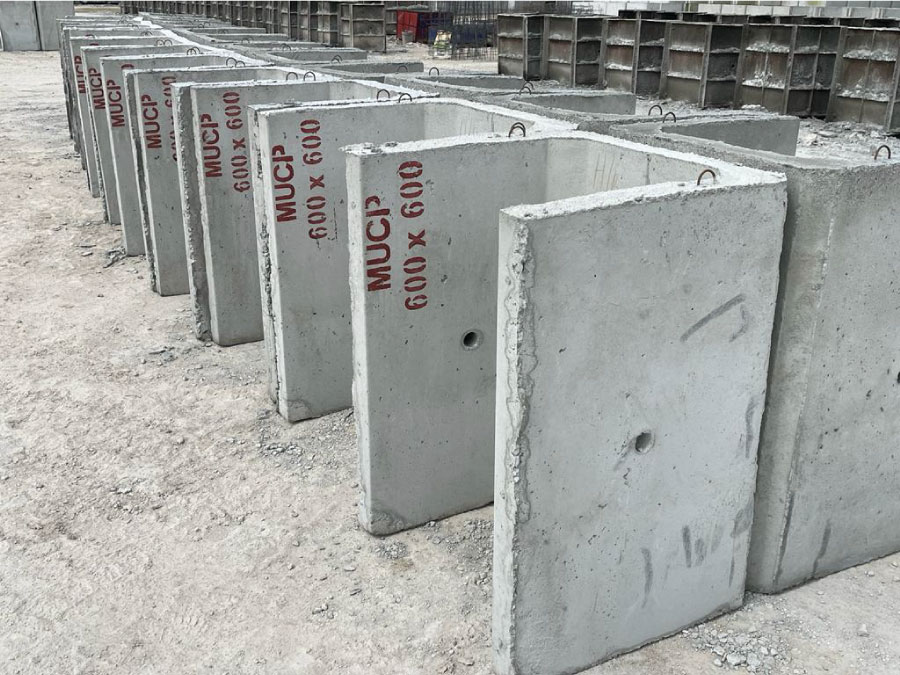

SMALL SIZE U-DRAIN [UD]

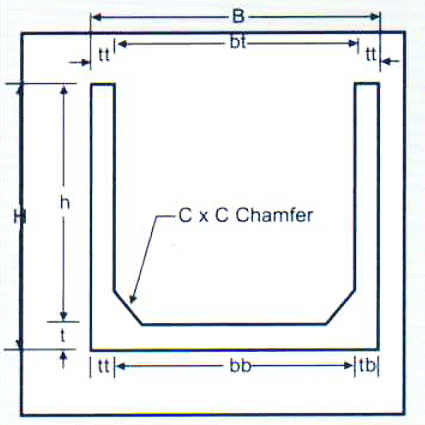

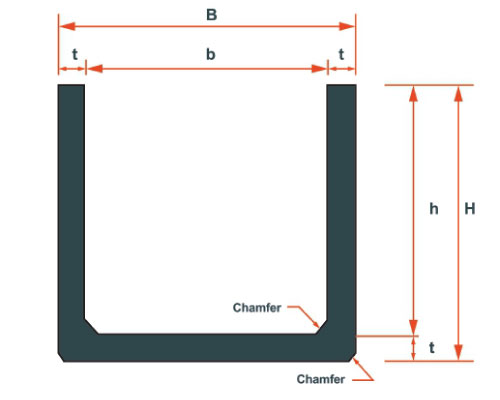

SMALL SIZE U-DRAIN DIMENSIONS & PORPERTIES
| NORMAL SIZE (mm x mm) |
B (mm) |
bt (mm) |
hh (mm) |
h (mm) |
H (mm) |
C (mm) |
t (mm) |
tt (mm) |
tb (mm) |
WEIGHT (tonnes) |
| 300 x 300 300 x 450 300 x 600 |
420 425 430 |
300 305 310 |
290 290 290 |
300 450 600 |
360 510 665 |
60 60 60 |
60 60 65 |
60 60 60 |
65 67 70 |
0.20 0.26 0.33 |
| 450 x 450 450 x 600 |
575 580 |
455 640 |
440 440 |
450 600 |
510 665 |
60 60 |
60 65 |
60 60 |
67 70 |
0.29 0.36 |
*Scroll to right to see more details.

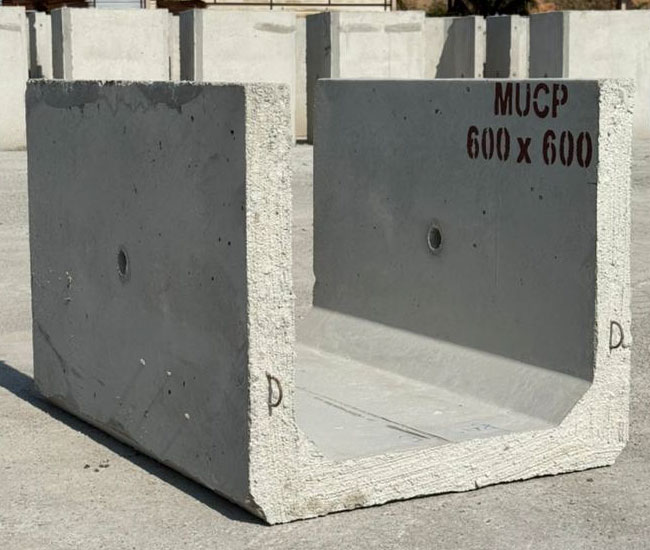

STANDARD SIZE U-DRAIN

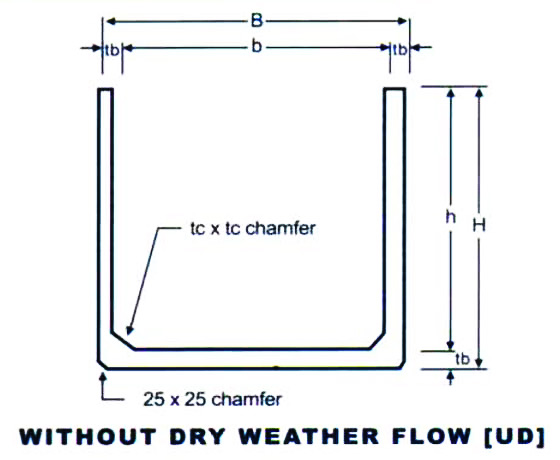

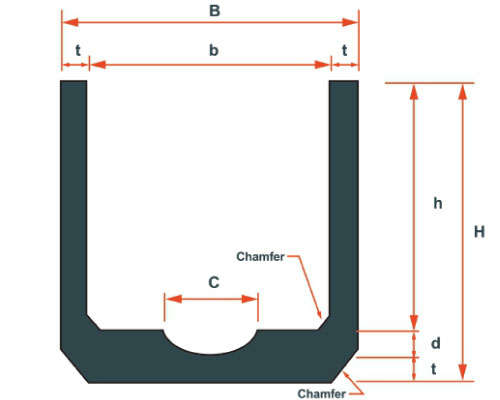

STANDARD SIZE U-DRAIN DIMENSIONS & PORPERTIES
| UD | UF | ||||||||||||
| NORMAL SIZE (mm x mm) |
B (mm) |
b (mm) |
h (mm) |
tb (mm) |
tc (mm) |
H (mm) |
WEIGHT (tonnes) |
e (mm) |
c (mm) |
R (mm) |
td (mm) |
H (mm) |
WEIGHT (tonnes) |
| 600 x 300 600 x 450 600 x 600 |
740 740 740 |
600 600 600 |
300 450 600 |
70 70 70 |
70 70 70 |
370 520 670 |
0.24 0.30 0.35 |
70 70 70 |
300 300 300 |
195 195 195 |
25 25 25 |
450 590 740 |
0.34 0.39 0.44 |
| 750 x 300 750 x 450 750 x 600 750 x 750 |
910 910 910 910 |
750 750 750 750 |
300 450 600 700 |
80 80 80 80 |
80 80 80 80 |
380 530 680 830 |
0.31 0.37 0.43 0.49 |
80 80 80 80 |
450 450 450 450 |
356 356 356 356 |
25 25 25 25 |
460 610 760 910 |
0.43 0.49 0.55 0.61 |
| 900 x 300 900 x 450 900 x 600 900 x 750 900 x 900 |
1060 1060 1060 1060 1060 |
900 900 900 900 900 |
300 450 600 700 900 |
80 80 80 80 80 |
80 80 80 80 80 |
380 530 680 830 980 |
0.34 0.40 0.46 0.52 0.58 |
80 80 80 80 80 |
450 450 450 450 450 |
356 356 356 356 356 |
25 25 25 25 25 |
460 610 760 910 1060 |
0.49 0.55 0.61 0.67 0.73 |
| 1200 x 300 1200 x 450 1200 x 600 1200 x 750 1200 x 900 1200 x 1050 1200 x 1200 |
1390 1390 1390 1390 1390 1390 1390 |
1200 1200 1200 1200 1200 1200 1200 |
300 450 600 700 900 1050 1200 |
95 95 95 95 95 95 95 |
50 50 50 50 50 50 50 |
395 545 695 845 995 1145 1295 |
0.47 0.54 0.61 0.68 0.75 0.82 0.89 |
225 225 225 225 225 225 225 |
1075 1075 1075 1075 1075 1075 1075 |
755 755 755 755 755 755 755 |
250 250 250 250 250 250 250 |
620 770 920 1070 1220 1370 1520 |
0.68 0.75 0.82 0.89 0.96 1.03 1.10 |
| 1500 x 600 1500 x 900 1500 x 1200 1500 x 1500 |
1700 1700 1700 1700 |
1500 1500 1500 1500 |
600 900 1200 1500 |
100 100 100 100 |
100 100 100 100 |
700 1000 1300 1600 |
0.74 0.88 1.03 1.18 |
225 225 225 225 |
1075 1075 1075 1075 |
755 755 755 755 |
250 250 250 250 |
925 1225 1525 1825 |
1.11 1.26 1.41 1.51 |
| 1800 x 600 1800 x 900 1800 x 1200 1800 x 1500 1800 x 1800 |
2030 2030 2030 2030 2030 |
1800 1800 1800 1800 1800 |
600 900 1200 1500 1800 |
115 115 115 115 115 |
115 115 115 115 115 |
715 1015 1315 1615 1915 |
0.94 1.11 1.28 1.45 1.62 |
225 225 225 225 225 |
1075 1075 1075 1075 1075 |
755 755 755 755 755 |
250 250 250 250 250 |
940 1240 1540 1840 2140 |
1.50 1.67 1.84 2.01 2.18 |
*Scroll to right to see more details.
